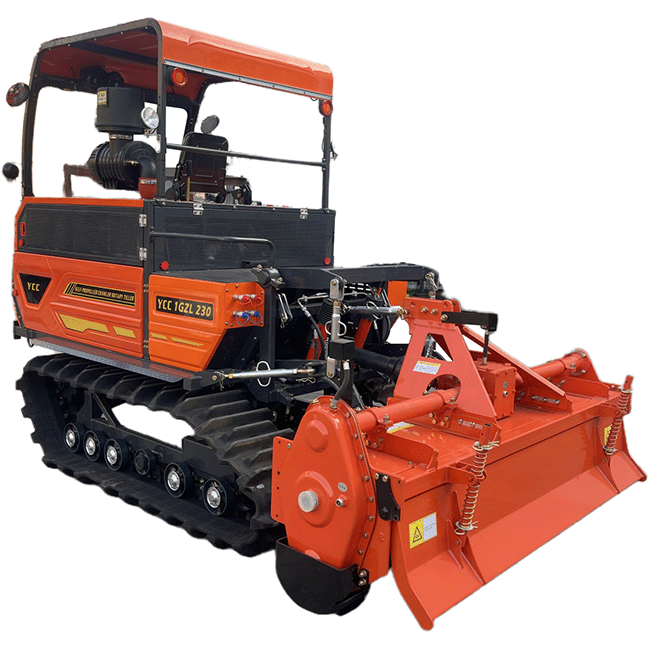

YCC 1GZL-230 Self-propelled Crawler Rotary Tiller

1.Self-propelled Crawler rotary tiller is a new type of paddy field protective tillage tool, which is a cultivation tool that uses the composite movement of the blade rotation to crush soil during the advance of the body.
2.The grounding pressure of the track is small,and the degree of compaction and damage to the farmland is light.
3.It has strong adhesion and large traction,which can adapt to heavy-duty operations, and has better working performance in wet mud or harsh environments.

Model:
YCC 1GZL-230


Availability:



Inquire

Product Description

Item	Unit	specification
Model	/	1GZL-230 Self-propelled crawler rotary tiller
Dimensions(LxWxH)	MM	3670x2250x2570
Total Weight	KG	2450kg
Rated Power	KW	XINCHAI 4D35GT 81kw(110HP)
Continuously variable displacement	/	45
Gearbox model	/	85
Working width	CM	200
Speed change mechanism type	/	(HST)+mechanical speed change 3 gears
Minimum ground clearance	MM	340
Rotary tillage device connection method	/	three point suspension
Working depth	CM	≥12
Ground pressure	KPa	16
Blade Quantity	PC	98
Gauge	MM	1250
Track pitch	MM	90
Track sections	Sections	53
Track width	MM	500

Crawler Rotary Tiller Crawler rotary cultivator Track rotary tiller Crawler cultivator Track rotary cultivator Track-type rotary tiller tillers for sale rotary cultivator tractor supply tillers power tiller

YCC 1GZL-230 Self-propelled Crawler Rotary Tiller
