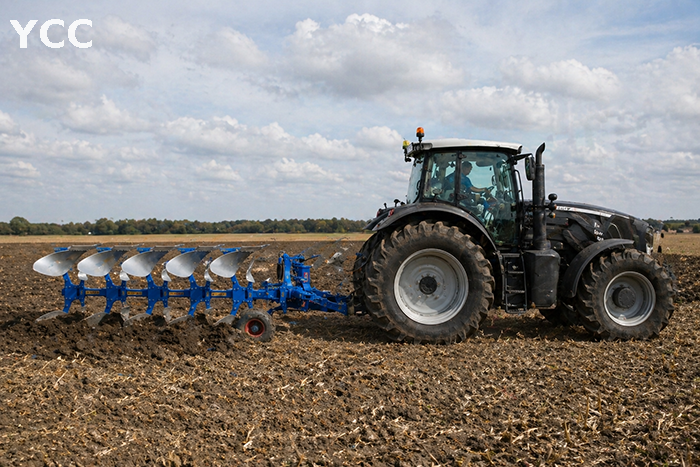

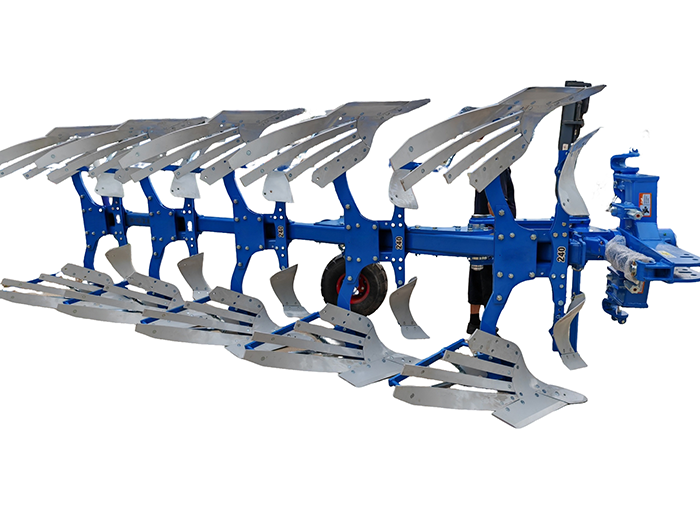

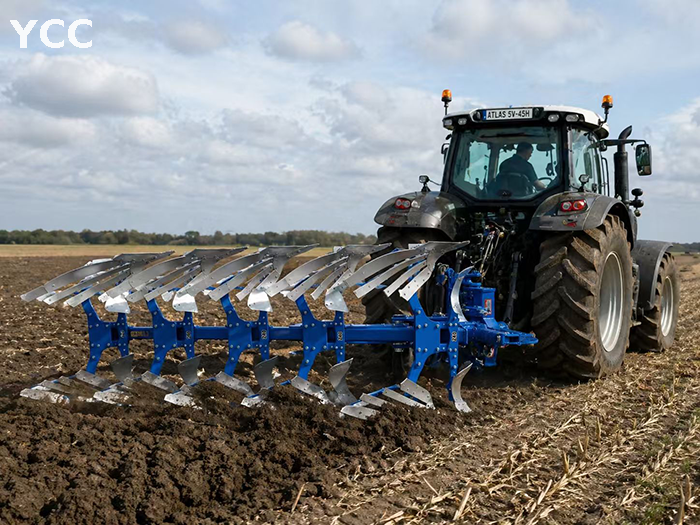

Mounted Reversible Plough ATLAS 5V-45H

1.General Specifications

- Type: Mounted reversible plough.

- Suitable for tractors with power range 150–250 HP.

- High-strength steel frame made of micro-alloyed steel.

- Frame profile: 120 × 120 mm.

- Underbeam clearance: 850 mm.

- Number of furrows: 5 pcs.

- Inter-body spacing: 850–1000 mm, available upon request.

- Turnover shaft diameter: 120 mm.

- Hydraulic turnover mechanism with in-cab control.

- Body protection system: shear bolt.

2.Working Bodies

- Adjustable working width of each furrow body: 30 / 35 / 40 / 45 cm.

- Maximum total working width: 2250 mm.
