Product Features:

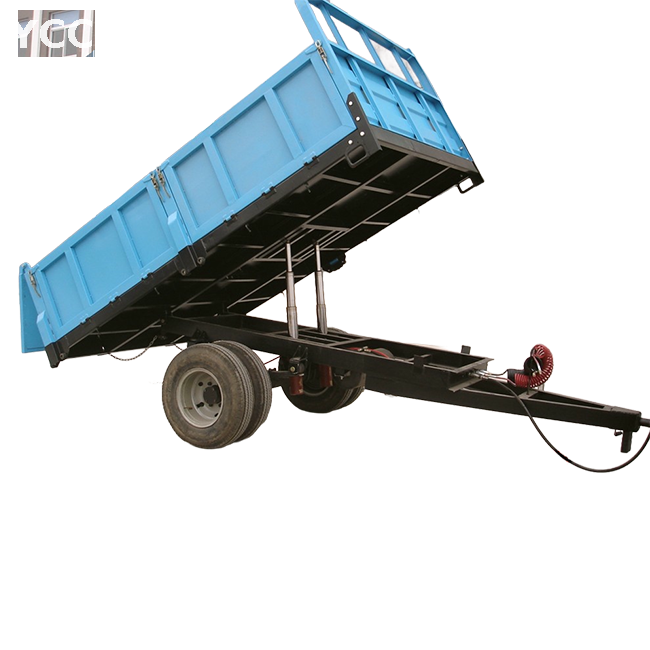

3-ton, 4-ton, 5-ton, 7-ton, 8-ton, 10-ton trailers are suitable for transporting heavy-duty cargo and long-distance transportation. These vehicles are fully equipped, operate smoothly, have an attractive appearance, are durable, and can be used in a wide range of operating environments with high loading efficiency.
Power range: 30-100 hp.
Steering type: centreless turntable.
Shock absorption system: elastic spring plates.
Towing system: triangular frame live tow.
Self-unloading configuration: dual hydraulic cylinders.
Rear tail lights and side guards. Complete vehicle wiring harness.
Air circuit connection: quick-connect air hose fittings.
Electrical circuit connection: spiral seven-pin quick-connect plugs.
Hydraulic circuit connection: quick-change fittings.
Surface treatment: Large shot blasting machine to eliminate welding stress, rust removal, oxide scale removal, anti-rust paint, topcoat, and baking paint treatment.
Welding process: CO2 fixture welding.
Model | 7YCX-7 |
Carriage dimension(mm) | 3500*2200*700 |
dead weight(kg) | 1200 |
Load(kg) | 7000 |
Type of unload | rear dump |
Tyre | 7.50-16 STEEL WIRE TIRE |
Axle NO. | ONE |
Type of brake | Air brake |
NO. of tires | four |
Matched power(hp) | 70 |
