Product Features:
3-ton, 4-ton, 5-ton, 7-ton, 8-ton, 10-ton trailers are suitable for transporting heavy-duty cargo and long-distance transportation. These vehicles are fully equipped, operate smoothly, have an attractive appearance, are durable, and can be used in a wide range of operating environments with high loading efficiency.
Power range: 30-100 hp.
Steering type: centreless turntable.
Shock absorption system: elastic spring plates.
Towing system: triangular frame live tow.

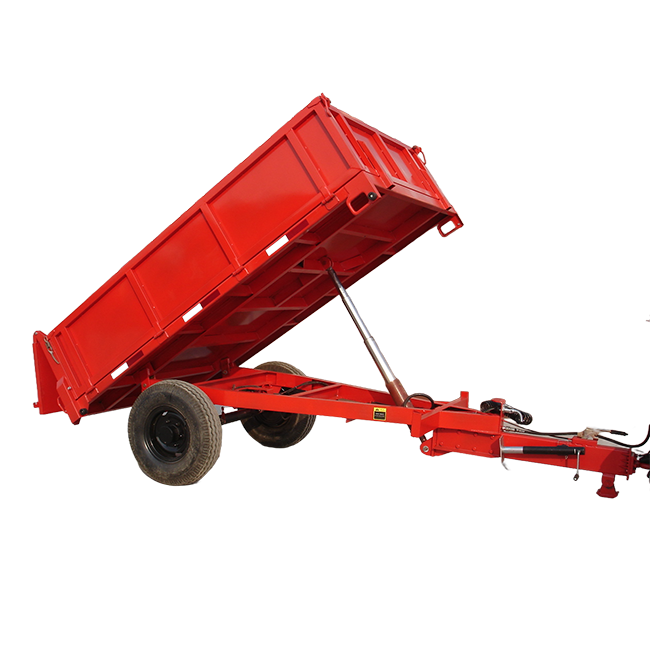

Self-unloading configuration: dual hydraulic cylinders.
Rear tail lights and side guards. Complete vehicle wiring harness.
Air circuit connection: quick-connect air hose fittings.
Electrical circuit connection: spiral seven-pin quick-connect plugs.
Hydraulic circuit connection: quick-change fittings.
Surface treatment: Large shot blasting machine to eliminate welding stress, rust removal, oxide scale removal, anti-rust paint, topcoat, and baking paint treatment.
Welding process: CO2 fixture welding.
model | 7YCX-4 |
Carriage dimension Length*width*height（mm） | 3120*1920*460 |
Overall dimensions Length*width*height（mm） | 4450*2000*1450 |
Rated weight（kg） | 4000 |
Dead weight（kg） | 945 |
Specification of tire/Qty | 8.25-16/2 |
Brake | Air brake |
Tipping pattern | Rear tip |
Matched power（HP） | 35-40 |
