Product Features:

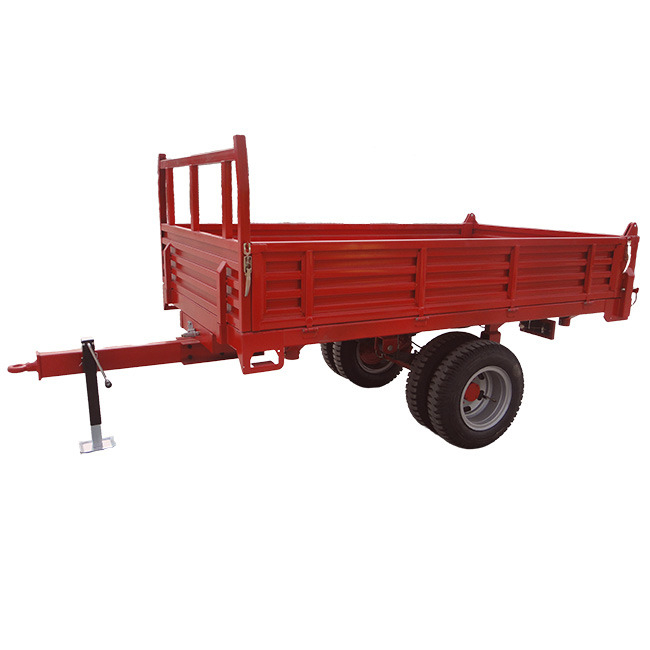

3-ton, 4-ton, 5-ton, 7-ton, 8-ton, 10-ton trailers are suitable for transporting heavy-duty cargo and long-distance transportation. These vehicles are fully equipped, operate smoothly, have an attractive appearance, are durable, and can be used in a wide range of operating environments with high loading efficiency.
Power range: 30-100 hp.
Steering type: centreless turntable.
Shock absorption system: elastic spring plates.
Towing system: triangular frame live tow.

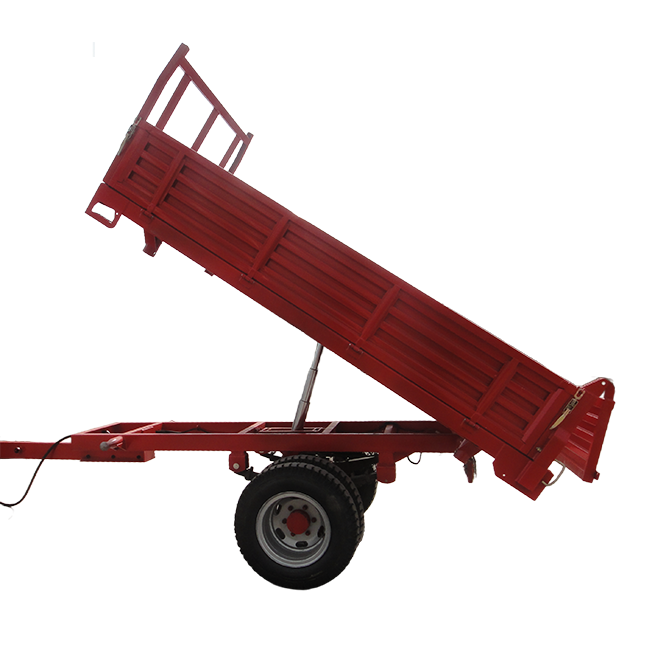

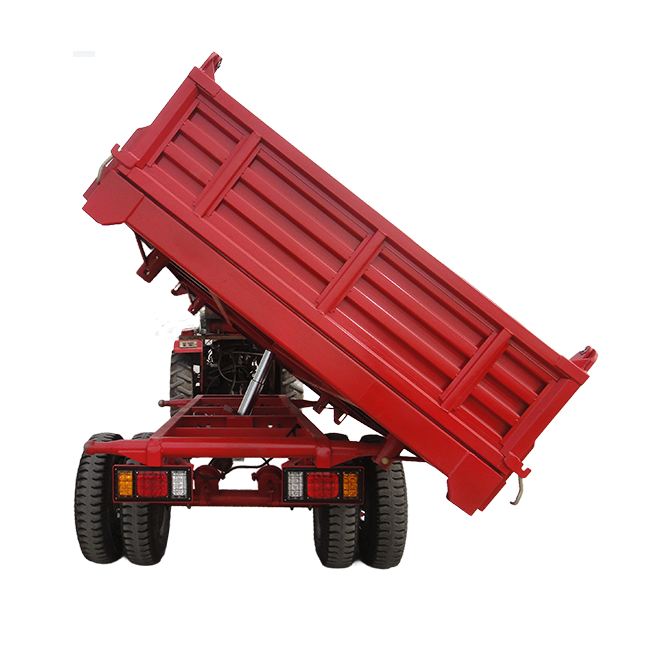

Self-unloading configuration: dual hydraulic cylinders.
Rear tail lights and side guards. Complete vehicle wiring harness.
Air circuit connection: quick-connect air hose fittings.
Electrical circuit connection: spiral seven-pin quick-connect plugs.
Hydraulic circuit connection: quick-change fittings.
Surface treatment: Large shot blasting machine to eliminate welding stress, rust removal, oxide scale removal, anti-rust paint, topcoat, and baking paint treatment.
Welding process: CO2 fixture welding.
Model | 7CX—5T |
Load kg | 5000 |
Dimensions of compartment mm | 3200*1800*460 |
Unloading form | Three-phase dumping |
Dumping | Hydraulic oil dumping |
Brake form | Air brake |
Shock absorbing form | Plate spring damping |
Tire model | 7.50—16 |
Number of tires | 4 pcs |
Number of outriggers | 1 pc |
Axle form | Round axle |
Product Features:
3-ton, 4-ton, 5-ton, 7-ton, 8-ton, 10-ton trailers are suitable for transporting heavy-duty cargo and long-distance transportation. These vehicles are fully equipped, operate smoothly, have an attractive appearance, are durable, and can be used in a wide range of operating environments with high loading efficiency.
Power range: 30-100 hp.
Steering type: centreless turntable.
Shock absorption system: elastic spring plates.
Towing system: triangular frame live tow.
Self-unloading configuration: dual hydraulic cylinders.
Rear tail lights and side guards. Complete vehicle wiring harness.
Air circuit connection: quick-connect air hose fittings.
Electrical circuit connection: spiral seven-pin quick-connect plugs.
Hydraulic circuit connection: quick-change fittings.
Surface treatment: Large shot blasting machine to eliminate welding stress, rust removal, oxide scale removal, anti-rust paint, topcoat, and baking paint treatment.
Welding process: CO2 fixture welding.
Model | 7CX—5T |
Load kg | 5000 |
Dimensions of compartment mm | 3200*1800*460 |
Unloading form | Three-phase dumping |
Dumping | Hydraulic oil dumping |
Brake form | Air brake |
Shock absorbing form | Plate spring damping |
Tire model | 7.50—16 |
Number of tires | 4 pcs |
Number of outriggers | 1 pc |
Axle form | Round axle |
