Product Technical Specifications | ||
Item | Unit | Design value |

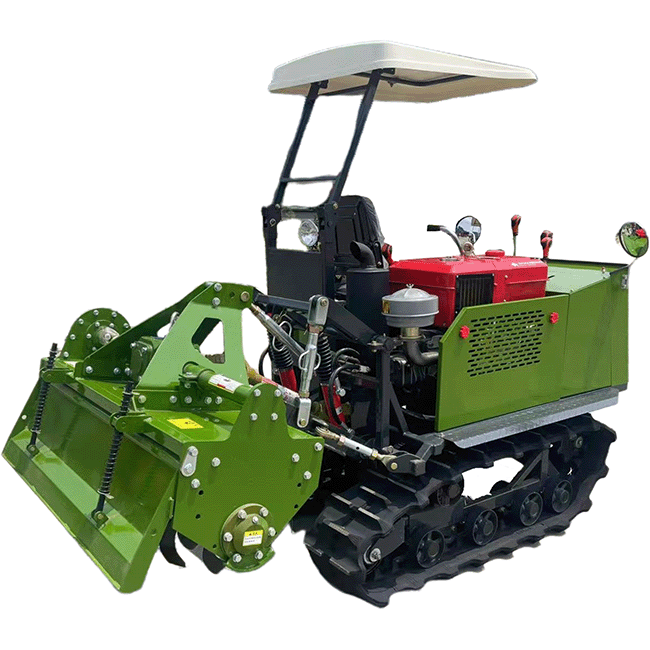

Model Name | / | 1GZL-120 Self-propelled crawler rotary tiller |
Overall dimensions (LxWxH) | mm | 2850x1350x1420 |
Machine quality | kg | 1100kg |
Engine Model | / | Changchai T35M-R57 (National I) |
Matching power rated power | kw | 25.7(35HP) |
Matching power rated speed | r/min | 2300 |
Working width | cm | 120 |
Gearbox Model | / | GL-15F(Solid) |
Speed change mechanism type | / | Mechanical transmission 6 gears |
Minimum ground clearance | mm | 260 |
Rotary tillage device connection method | / | Three-point suspension |
Working parts transmission mode | / | Side gear drive |
Engine and clutch connection method | / | Belt |
Braking method | / | Friction plate |
Rotary tiller blade model | / | IT195 |
Total number of knives installed on the knife roller | piece | 26 |
Gauge | mm | 800 |
Track pitch | mm | 90 |
Track sections | knot | 38 |
Track width | mm | 350 |
