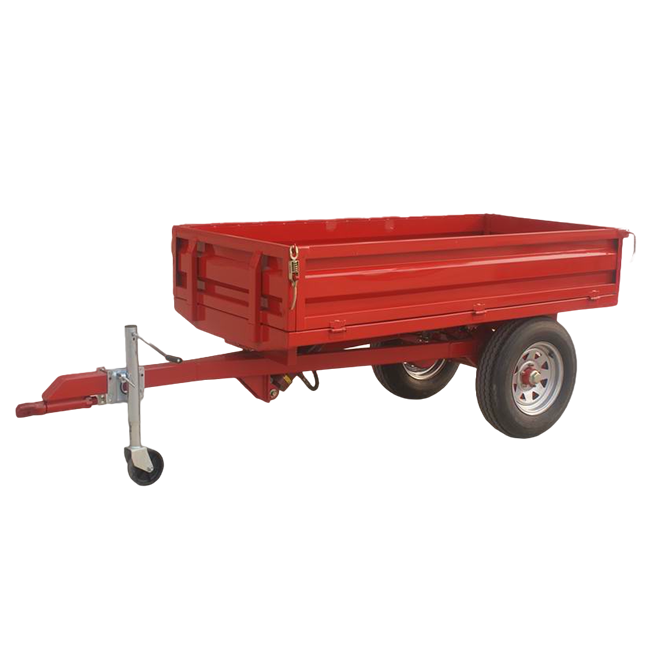

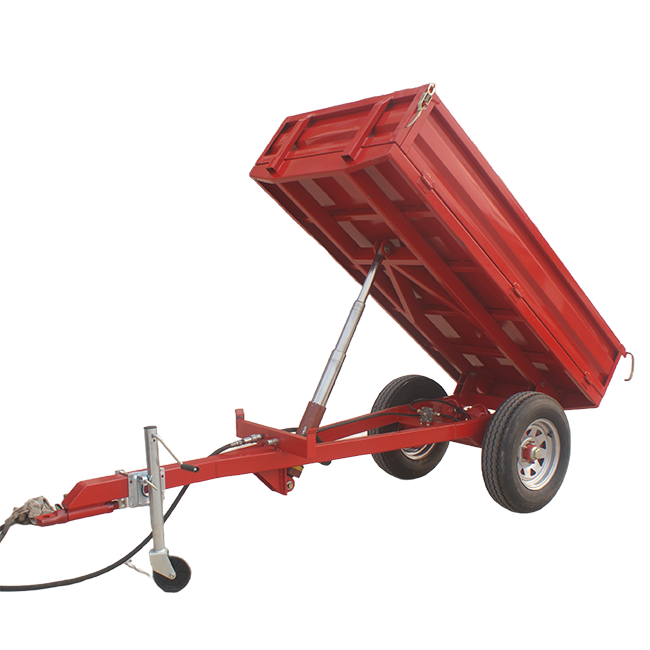

1Ton rear-tilting European-style trailer features a loading and unloading method that allows it to tilt left or right and flip backward on its own. The European-style design lacks shock absorption, enabling the trailer to tilt backward, left, or right during unloading, making it ideal for use in narrow spaces.
It is suitable for transporting heavy loads and for both short- and long-distance transportation. The trailer is fully equipped, operates smoothly, has an attractive appearance, is durable, and can be used in a wide range of working environments, offering high loading efficiency.
Model | 7YCX—1T |
Loading capacity（kg） | 1000 |
Self weight（kg） | 305 |
Overall dimensions（mm） | 2970*1100*970 |
Loading space（mm） | 2000*1000*330 |
Specification of tire | ST175/80d13 |
Brake form | Air brake充气刹 |
Unloading form | Back-tipping |
Matched tractor（hp） | 8--12 |
Carriage volume（m³） | 0.66 |
