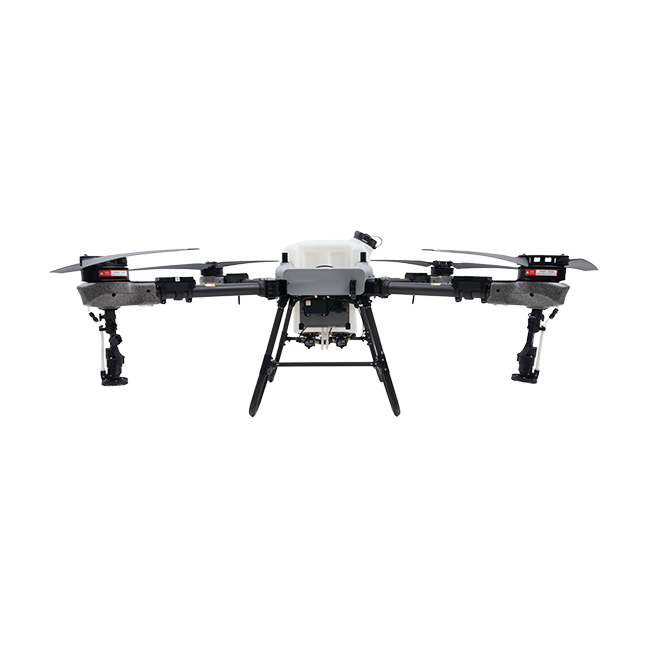

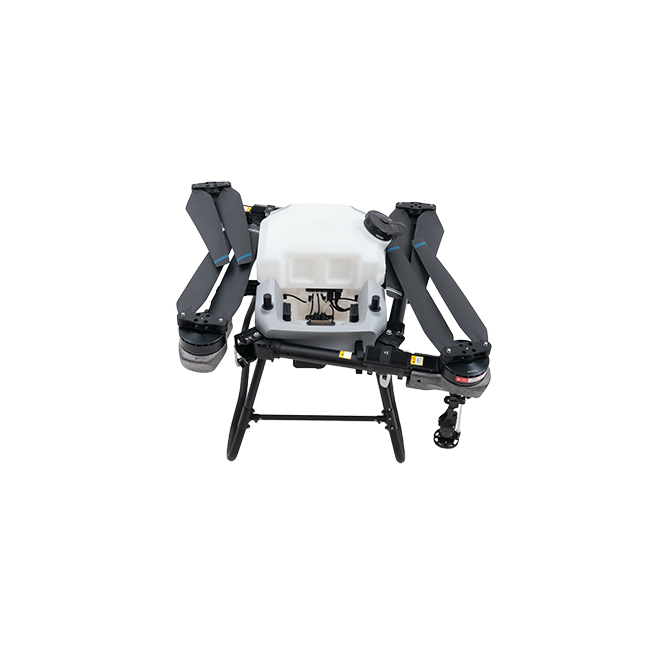

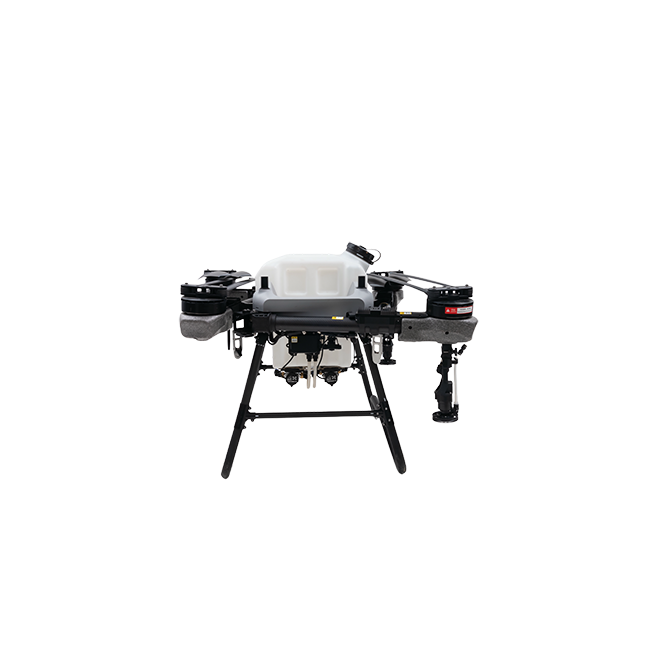

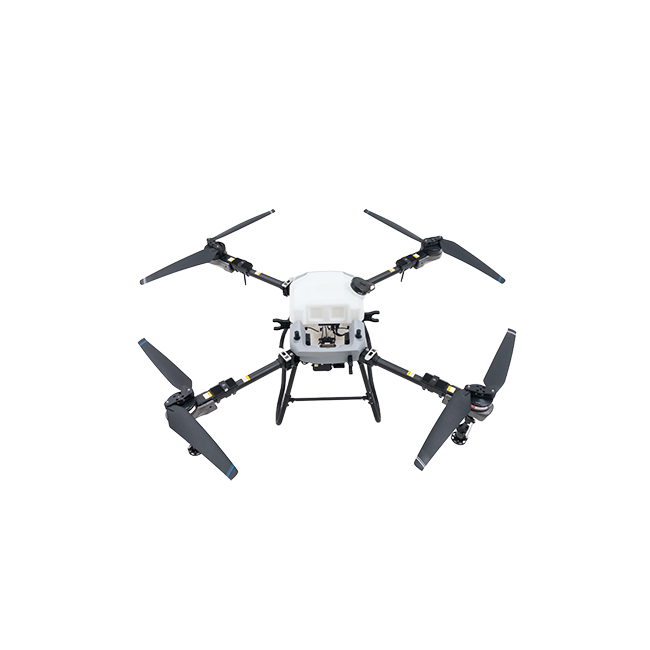

TF50 | ||
Airframe | Airframe Dimensions (incl.propellers)(mm) | 3060mm*3050mm*860mm |
Transport Dimensions(mm) | 1110mm*850mm*860mm | |
Max Takeoff Weight(kg) | 106 | |
Water-resistant | IP67 | |
Flight Control System | Flight Controller | High Integrated Agricultue Intelligent System |
Night Operation | √ | |
Obstacle Avoidance | √ | |
MMW Radar Terrain Tracing | √ | |
Terrain Tracing Accuracy(m) | ≤0.5 | |
Navigation Method | GPS | |
Spraying System | Maximum Capacity(kg) | 55 |
Spraying Tank(L) | 55 | |
Spreading Tank(L) | 80 | |
Spraying Width(m) | 8-12 | |
Efficiency(ha/mission) | 3.3 | |
Nozzle Type | Centrifugal Nozzles | |
Droplet Size(um) | 50-500um | |
Breakpoint Resume | √ | |
Instant Flow-start/stop | √ | |
Operating Efficiency[ha/hr] | 20 | |
Flowmeter/levelGauge | √ | |
Power System | Battery Capacity(mAh) | 18S 30000*1 |
Battery Warranty(cycle) | 1 Year or 1000 cycles | |
Charging Time(min.) | 10 | |
Remote Control System | Integrated intelligent Remote Controller | √ |
Charger | ||
FPV | 1080P Single Axis Gimble |
