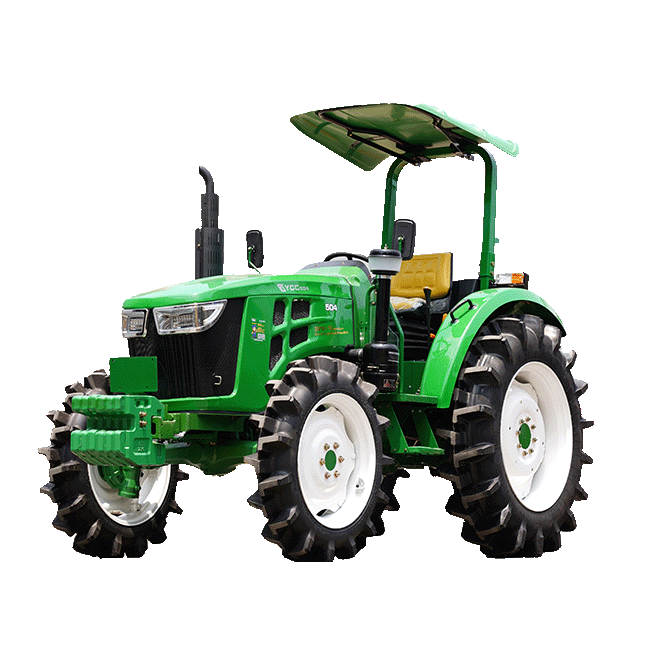

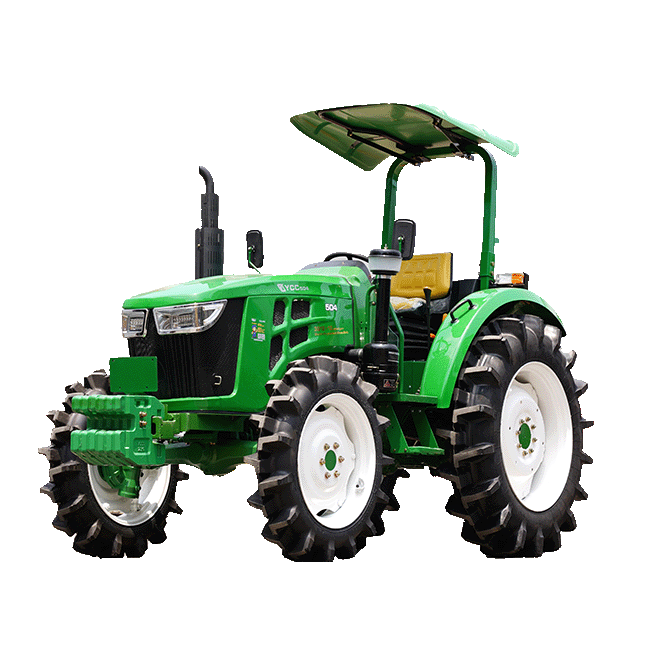

YCC 3B-504
Model | 3B-504 | 3B-604 | 3B-704 |
Engine Brand | XinChai Engine | ||
Engine Model | 4D32ZT31/603 | ||
Engine Power(KW) | 36.7 | 44.1 | 51.5 |
Engine Rated Speed | 2300 | ||
Fuel System | Electronically Controlled Unit Pump | ||
Gearbox | Dry Double-acting Clutch,12 Forward Gears,12 Reverse Gears,Sleeve Shif,Shuttle Shift | ||
Power Output Shaft Speed (rpm) | 540 and 720 | ||
Power Output (KW) | ≥34.5 | ||
Traction Force(KN) | ≥17.5 | ||
Number Of Night Pressure Output Valve Groups | 1 Groups Or 2 Groups | ||
Maximum Lifting Force(KN) | ≥9.1 | ||
Cultivation Depth Adjustment Method | Force Control,Position Control And Float Control | ||
Wheelbase(mm) | 1960 | ||
Minimum Turning Radius(m) | 4.6 | ||
Maximum Rear Weight(Kg) | 328 | ||
Maximum Use Weight(Kg) | 2100(Without Cabin) 2350(With Cabin) | ||
Overall dimensions(Length*Width*Height,mm) | 3680*(1700-1800)*2440 | ||
Model | 3B-504 | 3B-604 | 3B-704 |
Engine Brand | XinChai Engine | ||
Engine Model | 4D32ZT31/603 | ||
Engine Power(KW) | 36.7 | 44.1 | 51.5 |
Engine Rated Speed | 2300 | ||
Fuel System | Electronically Controlled Unit Pump | ||
Gearbox | Dry Double-acting Clutch,12 Forward Gears,12 Reverse Gears,Sleeve Shif,Shuttle Shift | ||
Power Output Shaft Speed (rpm) | 540 and 720 | ||
Power Output (KW) | ≥34.5 | ||
Traction Force(KN) | ≥17.5 | ||
Number Of Night Pressure Output Valve Groups | 1 Groups Or 2 Groups | ||
Maximum Lifting Force(KN) | ≥9.1 | ||
Cultivation Depth Adjustment Method | Force Control,Position Control And Float Control | ||
Wheelbase(mm) | 1960 | ||
Minimum Turning Radius(m) | 4.6 | ||
Maximum Rear Weight(Kg) | 328 | ||
Maximum Use Weight(Kg) | 2100(Without Cabin) 2350(With Cabin) | ||
Overall dimensions(Length*Width*Height,mm) | 3680*(1700-1800)*2440 | ||
